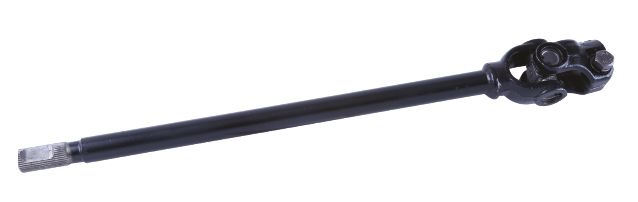

(512)- SCSA
9435

SHAFT MAJOR DIA 15.65 X 36 SPLINES || YOKE MAJOR DIA 17.84 X 36 SPLINES || LENGTH 580 / 22.83"

TATA ACE MEGA DICOR (MISSING TEETH ON SHAFT) || Ref.No.: 5517 4699 0113

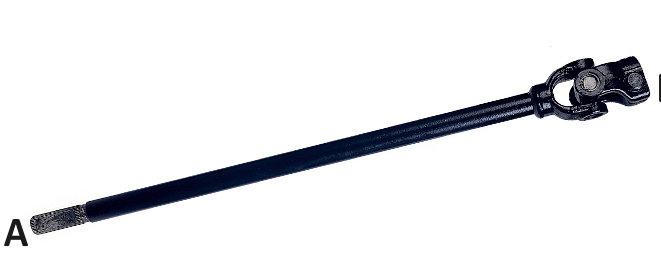

(511)- SCSA 9335
STEERING COLUMN SHAFT ASSEMBLY

SHAFT MAJOR DIA 15.75 X 36 SPLINES YOKE MAJOR DIA 14.85 X 30 SPLINES LENGTH 490/19.29"

MAHINDRA JEETO Ref. No.:1104ABB00021N

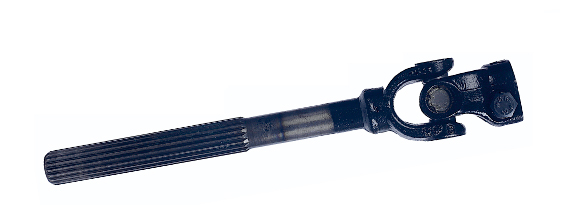

(510)- SCSA
9135

SHAFT MAJOR DIA 19.60 X 19 SPLINES || YOKE MAJOR DIA 14.85 X 30 SPLINE || LENGTH 264/10.39"

LEYLAND DOST POWER STEERING (UPPER) || Ref.No.: 480D22VA1J

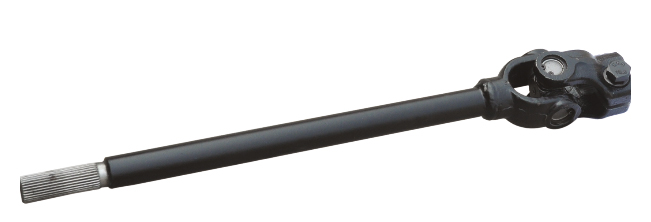

(509)- SCSA
9035

SHAFT MAJOR DIA 19.60 X 19 SPLINES || YOKE MAJOR DIA 17.84 X 36 SPLINES LENGTH 264/10.39"

LEYLAND DOST MANUAL STEERING (UPPER) || Ref.No.: 480D22VA0J

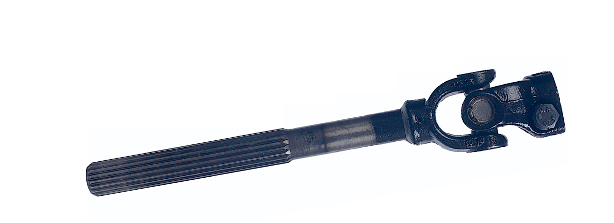

(109)- SCSA
9935

SHAFT MAJOR DIA 15.80 X 36 SPLINES || YOKE MAJOR DIA 17.84 X 36 SPLINES || TOTAL LENGTH 408/16.06"

TATA MAGIC (LONG TYPE) || Ref.No.: 2829 4610 0112

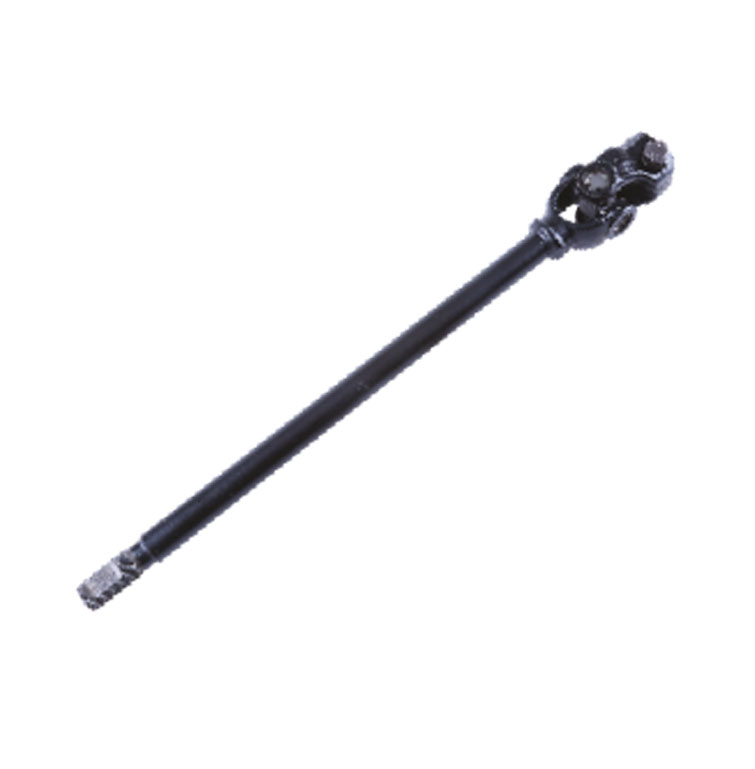

(108)- SCSA
9635

SHAFT MAJOR DIA 14.31 X 30 SPINES || YOKE MAJOR DIA 16.06 X 36 SPLINES || LENGTH 348/13.70"

TATA SUPER ACE (LOWER) || Ref.No.: 074547/2818 4610 0120

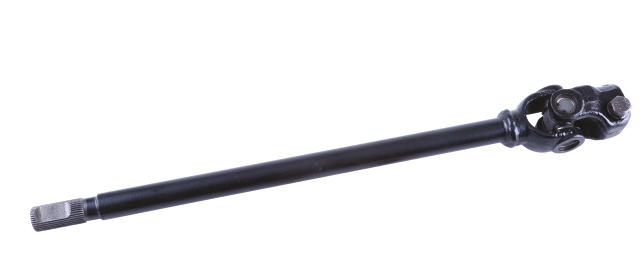

(107)- SCSA
9535

SHAFT MAJOR DIA 14.45 X 30 SPLINES || YOKE MAJOR DIA 15.95 X 36 SPLINES || LENGTH 540/21.25"

TATA IRIS-ZIP (MISSING TEETH IN YOKE) || Ref.No.: 5517 4699 0114

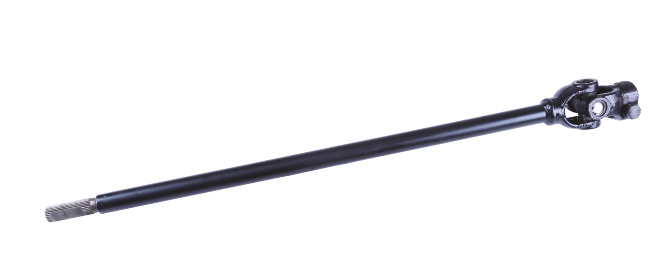

(103)- SCSA
2635

SHAFT MAJOR DIA 16.52 X 36 SPLINES || YOKE MAJOR DIA 14.85 X 30 SPLINES || LENGTH 293/11.54"

MARUTI 800, LOWER

(102)-

(101)-

(100)-

(99)-

(98)- SCSA
1035

SHAFT MAJOR DIA 15.70 X 36 SPLINES || YOKE MAJOR DIA 17.84 X 36 SPLINES || LENGTH 398/15.66"

TATA ACE - SHORT TYPE || Ref.No.: NA
