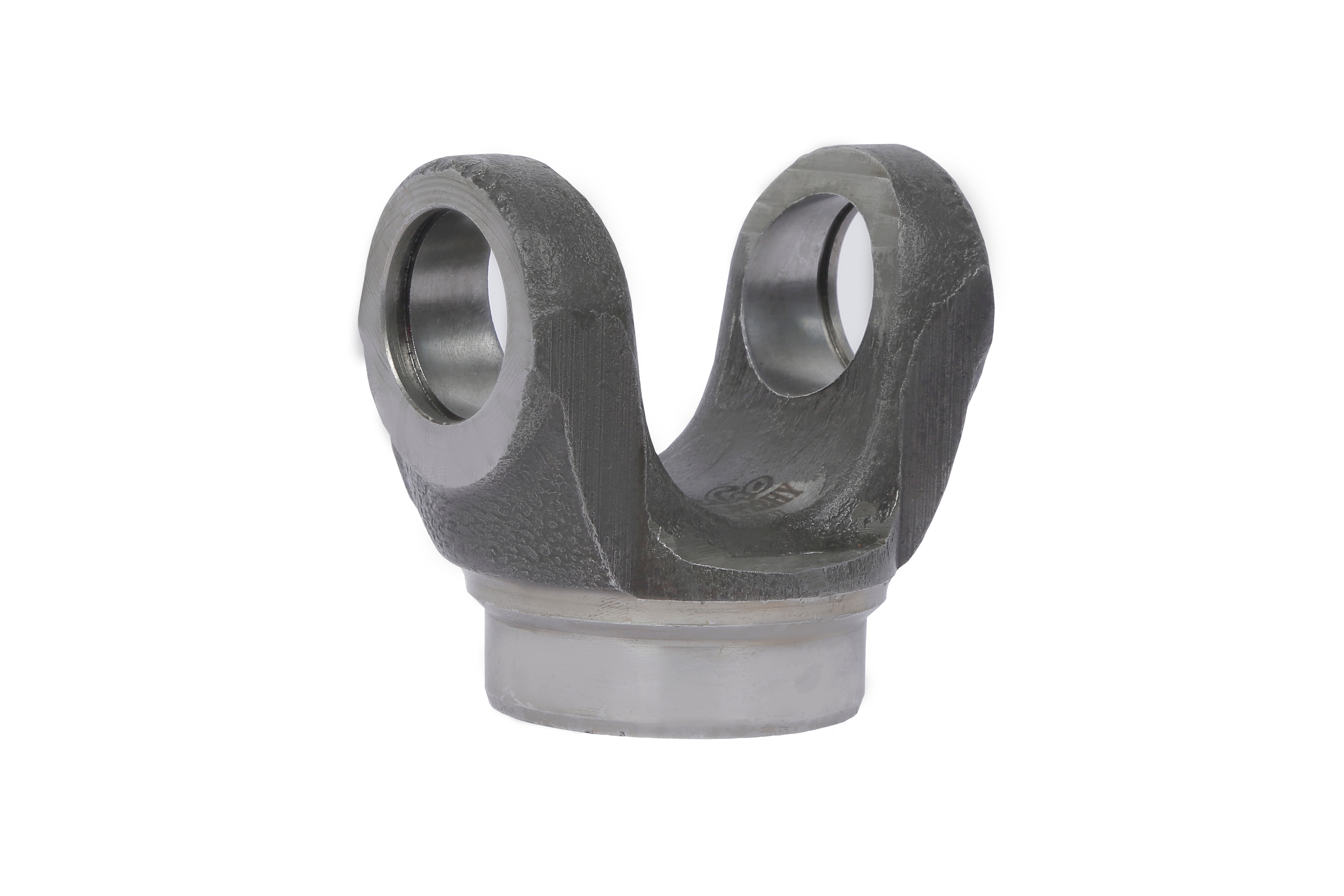

(789)- 0031 P22HY HALF YOKE
25.00 X 63.80 (0031-GX31) || 2500 6380 0000 6630
NOSE 47/1.85", HEIGHT 66/2.59"
TATA INTRA V10, 20, 30 || Ref.No.: NA/000/000/485/000

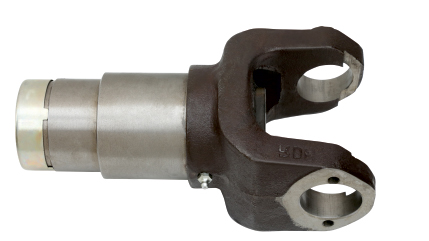

(773)- 1410 P15SY16 (1410 P15SY)
16 SPLINES Φ35 SLEEVE YOKE || 30.19 X 106.15 (1410-GX160) || 3019 1061 0000 1091
LENGTH 187/7.36"
TATA 407 TURBO, EICHER CANTER || Ref.No.: NA/149A/263/266/470

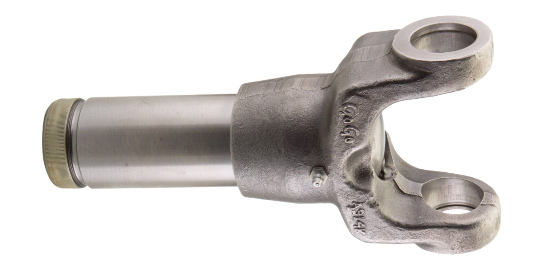

(506)- 1550 P24SY27 (1550 P24SY/P24 SY)
27 SPLINES (26+1) Φ45 SLEEVE YOKE || 34.91 X 126.10 (1550-GX10) || 3491 1261 0000 1291
(MISSING 1 SPLINES), LENGTH 242/9.52"
TATA 1109 || Ref. No: NA/119/000/855/384

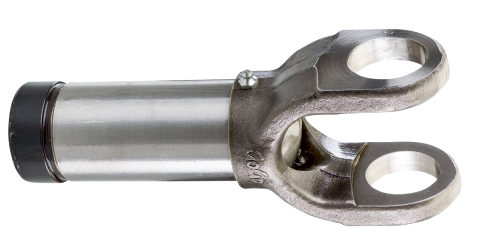

(505)- 1310 K15SY25 SLEEVE YOKE
25 SPLINES (24+1) Φ28 || 27.00 X 81.60 (1310-GX15MVX) || 2700 8160 0000 8460
(MISSING 1 SPLINE) , LENGTH 166/6.53"
LEYLAND BADA DOST || Ref.No.: NA/000/000/379/000

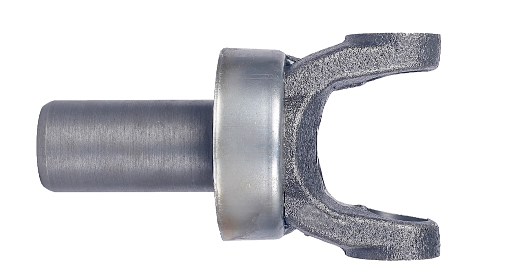

(504)- 1480 P20SY24 (1480 P20SY/P20 SY)
24 SPLINES (22+2) Φ39 || SLEEVE YOKE || 34.91 X 106.20 (1480-GX11) || 3491 1062 0000 1092
(MISSING 2 SPLINES), LENGTH 226/8.89"
TATA 407 N/M, PICKUP 410 BSIII || Ref.No.: NA/169/296/374/510

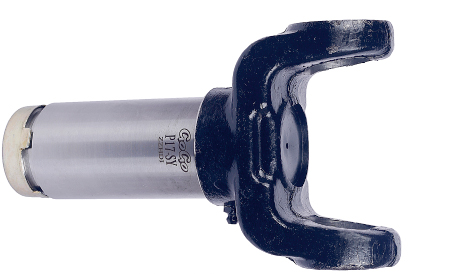

(503)- 1310 K15SY22 SLEEVE YOKE
22 SPLINES Φ30 || 27.00 X 81.60 (1310-GX15MVX) || 2700 8160 0000 8460
LENGTH 166/6.53"
LEYLAND BADA DOST || Ref.No.: NA/000/000/381/000

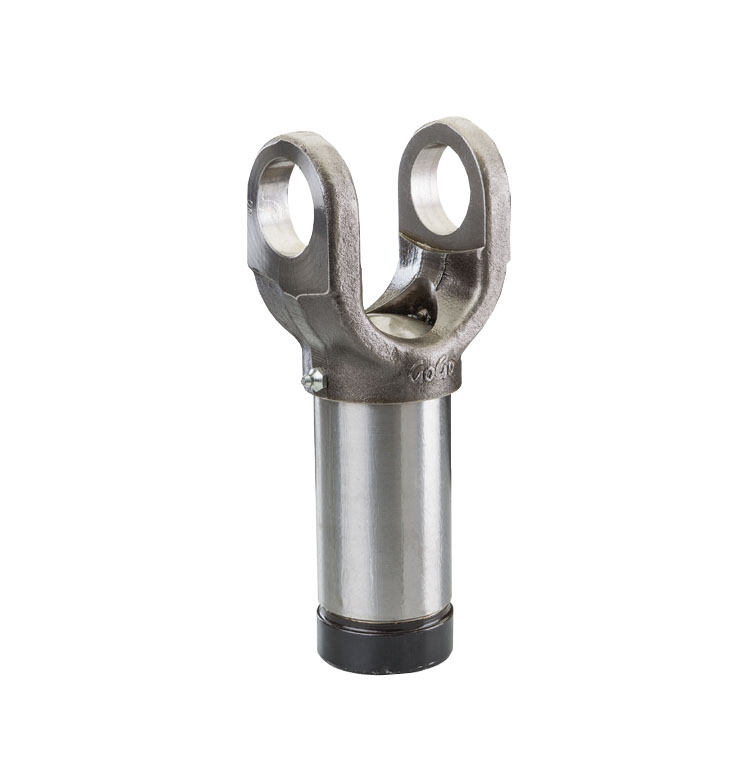

(502)- 0103 P21SY22 (0103 P21SY/P21 SY)
22 SPLINES Φ24 SLEEVE YOKE
TATA ACE MAGIC
Ref. No.: SPR 7001158/115/000/431/281

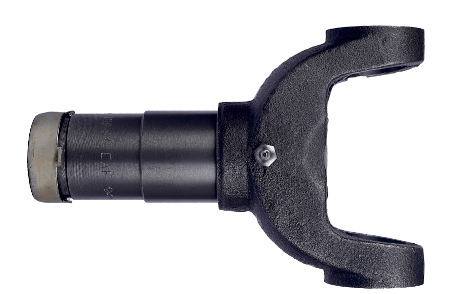

(501)- 0031 P22SY22 22SPLINES Φ24 SLEEVE YOKE
25.00 X 63.80 (0031 GX31) || 2500 6380 0000 6630
LENGTH 154/6.06"
TATA INTRA V10,20,30 || Ref.No.: NA/000/000/479/000
(500)- 1310 K15SY21 SLEEVE YOKE
21 SPLINES Φ28 || 27.00 X 81.60 (1310-GX15MVX) || 2700 8160 0000 8460
LEYLAND DOST O/M || Ref.No.: NA/000/235/000
(499)- 1550 K10SY16 (1550 K10SY/K10 SY)
16 SPLINES Φ63 SLEEVE YOKE || 34.91 X 126.10 (1550-GX10) || 3491 1261 0000 1291
LEYLAND 345/13.58"
LEYLAND 3116, 2516 BSIII, IA || Ref.No.: NA/139/244/776/269
(498)- 1550 P19SY16 (1550 P19SY/P19 SY)
16 SPLINES Φ38 SLEEVE YOKE || 34.91 X 126.10 (1550-GX10) || 3491 1261 0000 1291
LENGTH 201/7.91"
TATA 407, 412 TIPPER, 109 MARCOPOLO, 709/909 BS3 || Ref.No.: 6689113/167/270/376/428
(497)- 1480 P17SY1638 SLEEVE YOKE
16 SPLINES Φ38 || 34.91 X 106.20 (1480-GX11) || 3491 1062 0000 1092
LENGTH 198/7.79"
TATA 407 N/M, PICKUP 410 BSIII || Ref.No.: NA/118/252/269/649
(495)- 1310 SY168 (R01 SY7)
16 SPLINES MAJOR Φ32 SLEEVE YOKE 27.00 X 81.60 (1310-GX15MVX) 2700 8160 0000 8460
LENGTH 168/6.61"
MAHINDRA Ref.No.: NA/151/000/480/086
(494)- 1310 SY155
16 SPLINES Φ32 SLEEVE YOKE 27.00 X 81.60 (1310-GX15MVX) 2700 8160 0000 8460
LENGTH 155/6.10"
BOLERO FLAT BED MEGA REFRESH PICK Ref.No.: 3240912M/000/000/000/000
(493)- 1310 SY154 (R05 SY)
16 SPLINE Φ32 SLEEVE YOKE 27.00 X 81.60 (1310-GX15MVX) 2700 8160 0000 8460
LENGTH 154/6.06" (MOULDED RUBBER SEAL)
MAHINDRA BOLERO FLAT BED Ref.No.:NA/154A/000/451/508
(492)- 1310 SY153 (R01
LENGTH 153/6.02
MAHINDRA Ref.No.: NA/154/000/451/086
(333)-
(249)- 1480 P17SY1640 (1480 P17SY/P17 SY)
16 SPLINES ΦSLEEVE YOKE || 34.91 X 106.20 (1480-GX11) || 3491 1062 0000 1092
(248)- 1710 P13SY16 (1710 P13SYS/P13 SYS)
16 SPLINES Φ63 || 49.20 X 154.80 (1710-GX5280VX) || 4920 1548 0000 1679
LENGTH 278/10.94" (SMALL)
TATA 4018 O/M PATTI TYPE || Ref.No.: 2846 4112 0104/107/208/801/06B
(247)- 1710 P13SY16B (1710 P13SYB/P13SYB)
LENGTH 331/13.03" (BIG)
TATA 4018 O/M PATTI TYPE || Ref.No.: 2841 4112 0102/136/237/807/310
(246)- 0407 P16SY16 (0407 P16SY/ P16 SY)
16 SPLINES MAJOR Φ 35 SLEEVE YOKE 30.06 X 81.60 (0407-GX02) 3006 8160 0000 8460
LENGTH 167/6.57"
TATA 407 O/M Ref.No.: 2651 4110 0125/110/215/251/085
(245)- 0090 P10SY30 (0090 P10SY30/P10 SY)
30 SPLINES Φ49 SLEEVE YOKE || 41.27 X 125.85 (0090-GX600VX) || 4127 1258 0000 1305
LENGTH 295/11.61"
TATA 2515 TC, LPT TRUCK || Ref.No.: INSKU-100257/124/207/401/141
(244)- 1312 P04SY16 (1312 P04SY/P04 SY)
16 SPLINES Φ51 SLEEVE YOKE || 46.06 X 120 X 69.10 (1312-GX104VX) || 4606 1200 6910 7510
LENGTH 307/12.08"
TATA 1312 DUMPER || Ref.No.: INSKU-100233/103/205/231/06A
(243)- 1312 P03SY16 (1312 P03SY/P03 SY)
LENGTH 267/10.51"
TATA 1312 || Ref.No.: 25764112 5104/102/202/201/006
