(421)- 2040 P11HYA
HALF YOKE: (MATING U.J. CROSS NO. 2040-GX154)
TATA 4021, 4928 SIGNA, PRIMA
(420)- 1310 K15HYS HALF YOKE
27.00 X 81.60 (1310-GX15M) || 2700 8160 0000 8460
NOSE 47/1.85", HEIGHT 73/2.87"
LEYLAND DOST O/M, TATA SUPER ACE O/M || Ref.No.: NA/EVE/000/437/506
(419)- 1310 K15HYB HALF YOKE
NOSE 60 / 2.36", HEIGHT 77/3.03"
LEYLAND DOST N/M, TATA XENON || Ref.No.: NA/EVE/000/536/000
(418)- 0620 P28HY HALF YOKE
57.03 X 152.00 (0620-GX158) || 5703 1520 0000 1560
NOSE 108/4.25", HEIGHT 162/6.37"
TATA LPT 3118, BHARAT 3128C || Ref.No.: NA/EVE/550/880/475
(417)- 0590 P26HY (P26 HY)
HALF YOKE || 52.05 X 147.00 (0590-GX156) || 5205 1470 0000 1510
NOSE 95/3.74", HEIGHT 149/5.86"
TATA LPT 3731, 3723, 4923 || Ref.No.: 2167 4112 0159/455/565/567/541
(416)- 0490 P14HY (P14 HY)
HALF YOKE || 48.03 X134.50 (0409-GX153) || 4803 1345 0000 1382
NOSE 95/3.74", HEIGHT 142/5.59"
TATA 4018 || Ref.No.: F5204 9009 5945/VDTY 0403D102/409/556/903/388
(415)- 0325 P08HY (P08 HY)
HALF YOKE || 42.04 X 119.80 (0325-GX151) || 4204 1198 0000 1237
NOSE 84/3.31", HEIGHT 124/4.88"
TATA 2515 CEX || Ref.No.: 2632 4110 5106/407/536/787/260
(225)- 1310 R06HY (R06
27.00 X 81.60 (1310-GX15M) 2700 8160 0000 8460
NOSE 66/2.60", HEIGHT 80/3.14"
MAHINDRA MAXX PICKUP
(224)- 1310 R04HY (R04 HY)
HALF YOKE 27.00 X 81.60(1310-GX15M) 2700 8160 0000 8460
NOSE 71/2.79" , HEIGHT 80/3.14"
MAHINDRA MAXX PICKUP Ref.No.: 3228905/423/000/465/396
(223)- 1310 R01HY (R01
NOSE 60/2.36" , HEIGHT 77/3.03"
MAHINDRA (XLO TYPE) Ref.No.: 3228027/421/000/455/225
(222)- 0103 P21HYL (P21 HYL)
HALF YOKE -22.02 X 54.90 (0103-GX99) 2202 5490 0000 5730
NOSE 42/1.65" , HEIGHT 79/3.11" (LONG)
TATA ACE MAGIC Ref. No.: 50104 99501 6513/SDTY 0103L75/394A/000/448/000

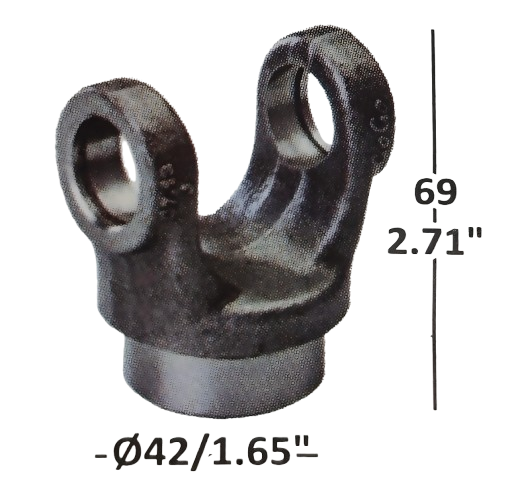

(221)- 0103 P21HY (P21 HY)
HALF YOKE || 22.02 X 54.90 (0103-GX99) || 2202 5490 0000 5730
NOSE 42/1.65", HEIGHT 69/2.71" (SMALL)
TATA ACE MAGIC || Ref.No.: NA/394/000/433/283
(220)- 1480 P17HY (P17 HY)
HALF YOKE || 34.91 X 106.20 (1480-GX11) || 3491 1062 0000 1092
NOSE 84/3.30", HEIGHT 96/3.78"
TATA 407 N/M, PICKUP 410 BSIII || Ref.No.: NA/389/548/276/392
(219)- 0407 P16HY (P16 HY)
HALF YOKE 30.06 X 81.60 (0407-GX02) 3006 8160 0000 8460
NOSE 54/2.12" , HEIGHT 93/3.66"
TATA 407 O/M Ref. No.: NA/391/511/254/090
(218)- 0490 P14HYA HALF YOKE
48.03 X 134.50 (0490-GX153) || 4803 1345 0000 1382
NOSE 91/3.58" , HEIGHT 142/5.59"
TATA 4018 || Ref.No.: F5204 9009 5945/409A/000/000/388
(217)- 1710 P13HY (P13 HY)
HALF YOKE || 49.20 X 154.80 (1710-GX5280VX) || 4920 1548 0000 1679
NOSE 95/3.74", HEIGHT 138/5.43"
TATA 4018 O/M PATTI TYPE || Ref.No.: 06-28-347/385/505/804/13A
(216)- 2040 P11HY (P11 HY)
HALF YOKE || 47.68 X 135.00 (2040-GX154) || 4768 1350 0000 1385
NOSE 91/3.58" , HEIGHT 153/6.02"
TATA 4021, 4928 SIGNA, PRIMA || Ref.No.: 2678 8404 7000/451/558/321/704
(215)- 0090 P10HY (P10 HY)
HALF YOKE || 41.27 X 125.85 (0090-GX600VX) || 4127 1258 0000 1305
NOSE 95/3.74", HEIGHT 128/5.03"
TATA 2516, 2518, 3516 || Ref.No.: 90-28-27/405/546/736/149
(214)- 0403 P09HY (P09 HY)
HALF YOKE || 42.04 X 129.30 || (0403-GX152M) || 4204 1293 0000 1332
NOSE 95/3.74" , HEIGHT 136/5.35"
TATA 2518, 3518 HYVA || Ref.No.: 2171 4112 5105/VDTY 0403D102/408/540/786/261
(213)- 1312 P03HY (P03 HY)
HALF YOKE || 46.06 X 120 X 69.10 (1312-GX104) || 4606 1200 6910 7510
NOSE 84/3.30", HEIGHT 132/5.20"
TATA 1312 || Ref.No.: 2576 4111 5109/383/504/205/013
(212)- 1210 P02HY P02 HY
HALF YOKE || 38.05 X 102.40 X 57.00 (1210-GX101) || 3805 1024 5700 6200
NOSE 68/2.68", HEIGHT 120.50/4.72"
TATA 1210 SE || Ref No.: 2523 4111 5115/382/507/157/033
(211)- 1210 P01HY (P01 HY)
NOSE 64/2.52", HEIGHT 118/4.65"
TATA 312, 1210 || Ref.No.:2523 4111 5115/381/509/156/059
(210)- 1550 K09HY (K09 HY)
HALF YOKE || 34.91 X 126.10 (1550-GX10) || 3491 1261 0000 1291
NOSE 84/3.30", HEIGHT 105/4.13"
LEYLAND TUSKER BUS || Ref.No.: F2134311, P1500114/402/527/308/185
(209)- 1550 K08HY (K08 HY)
HALF YOKE ASSEMBLY || 34.91 X 126.10 (1550-GX10) || 3491 1261 0000 1291
NOSE 71/2.80", HEIGHT 105/4.13
LEYLAND TUSKER TRUCK || Ref.No.: F2134011, P1500114/401/401/526/307/184
