(414)- 0490 P14FT26 FRONT TEETH
26 SPLINES Φ55 || MATING 0490-P14CC26X
NOSE 95/3.74", PIPE 4" || LENGTH 177/6.96", BEARING 65(TRIPLE STEP)
TATA 2518,3118 || Ref.No.: NA/359/423/811/380

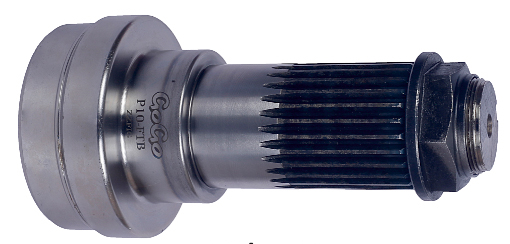

(413)- 0090 P10FT26B (0090 P10FTB/P10 FTB)
26 SPLINES Φ55 FRONT TEETH || MATING 0090-P10CC26X
NOSE 95/3.74", PIPE 4" || LENGTH 196/7.71", BEARING 55
TATA LPT 2518, LPK 1616, LPK 1613 || Ref.No.: INSKU-100853/355/000/817/307
(412)- 0490 P14FTW26 (0490 P14FTW)
NOSE 95/3.74", PIPE 4 " || LENGTH 151/5.94", BEARING 55, BOLT WITH WASHER
TATA LPT 3118,3718 || Ref.No.: NA/359/439/000/724
(409)- 2040 P11FTW20B FRONT TEETH
20 SPLINES Φ55 || MATING 2040-P11CC20X
NOSE 114/4.49", PIPE 4.75" || LENGTH 148/5.82", BEARING 55, BOLT WITH WARSHER
AL 3318, MNAL 35T, TATA LPS 4921, LPO1625, 1624, BENZ 3123 || Ref.No.: NA/368A/430/731/512
(408)- 2040 P11FTW20 FRONT TEETH
20 SPLINES Φ55
NOSE 95/3.74", PIPE 4" || LENGTH 158/6.22", BEARING 60, BOLT WITH WARSHAR
TATA SIGNA 4923 || Ref.No.: NA/000/432/555/512A
(407)- 1710 P13FT16B FRONT TEETH
16 SPLINES Φ59 || MATING 1710-P13CC16X
NOSE 108/4.25", PIPE 4.5" || LENGTH 190/7.45", BEARING 60
TATA 4018, 4923 || Ref.No.: NA/350/421/810/351
(406)- 1710 P13FT16 FRONT TEETH
NOSE 95/3.74", PIPE 4" || LENGTH 190/7.45", BEARING 60
TATA 3118, 3116, 4923 || Ref.No.: NA/349/420/809/350
(405)- 1410 G01FT10 (1410 G01FT)
10 SPLINES Φ38 FRONT TEETH || MATING 1410-G01CC10S
NOSE 71/2.80" , PIPE 3" || LENGTH 146/5.74", BEARING 40
EICHER CANTER 10.95 || Ref.No.: 353/418/529/243
(59)- 0407 P16FT16 (0407 P16FT/P16 FT)
16 SPLINES Φ34 FRONT TEETH
NOSE 54/2.12" , PIPE 2.25" LENGTH 175/6.88" , BEARING 35
TATA 407 Ref.No.: NA/351/406/259/89
(58)- 0090 P10FT26 (P09 FT)
NOSE 95/3.74" , PIPE 4" || LENGTH 178/7", BEARING 55
TATA LPT 2518, LPK 1616, LPK 1613 || Ref.No.: 2846 4110 5101/357/440/850/556A
(57)- 1312 P03FT26 (1312 P03FT/P03 FT)
26 SPLINES Φ55 FRONT TEETH || MATING 1312-P03CC26 ,1312-P07CC26
NOSE 84/3.30", PIPE 3.5" || LENGTH 200/7.87", BEARING 55
TATA 1312 || Ref.No.: 2576 4111 5104/343/402/209/11
(56)- 1210 P02FT14 (1210 P02FT/P02 FT)
14 SPLINES Φ40 FRONT TEETH || MATING 1210-P01CC14 || 1312-P03CC14
NOSE 68/2.68", PIPE 3" || LENGTH 188/7.40", BEARING 40
TATA 1210, SE || Ref.No.: 312 411 1702/342/403/163/32
(55)- 1210 P01FT14 (1210 P01FT/P01 FT)
14 SPLINES Φ40 FRONT TEETH || MATING 1210-P01CC14 /1312-P03CC14
NOSE 64/2.52", PIPE 2.75" || LENGTH 188/7.40", BEARING 40
TATA 1210 || Ref.No.: 312 411 1702/341/405/162/58
(54)- 1550 K09FT10 (1550 K09FT / K09 FT)
10 SPLINES Φ44 FRONT TEETH
NOSE 84/3.30", PIPE 3.50" || LENGTH 218/8.58" , BEARING 46
LEYLAND TUSKER BUS || Ref.No.: P1502535/362/411/313/183
(53)- 1550 K08FT10 (1550 K08FT/K08 FT)
NOSE 71/2.80 ", PIPE 3" || LENGTH 203/7.99", BEARING 46
LEYLAND TUSKER TRUCK || Ref.No.: P1502733/361/410/312/182
(52)- 0090 K02FT34 (0090 K02FT/K02 FT)
34 SPLINES Φ44 FRONT TEETH || MATING 0090-K02CC34
NOSE 97/3.82", PIPE 4" || LENGTH 160/6.30 ", BEARING 45
LEYLAND 2214,2516, EICHER 4" || Ref.No.: 5-53-271/363/409/767/148
