(404)- 1480 J01CH
CROSS HOLDER SQUARE: (MATING U.J. CROSS NO. 1480-GX11)
JCB 3DX
(403)- 1310 K15CHB (CROSS HOLDER)
27.00 X 81.60 (1310-GX15M) || 2700 8160 0000 8460
4 HOLES, HEX 15, CD 95.25, HEIGHT 54/2.12" (BIG)
LEYLAND DOST || Ref.No.: IB 001973/000/000/234/000
(401)- 0090 K02CHS (K02 CHS)
CROSS HOLDER || 41.27 X 125.85 (0090-GX600) || 4127 1258 0000 1305
4 HOLES, HEX 21, HEIGHT 104/4.09"
LEYLAND 2214 || Ref. No.: NA/057/627/927/299

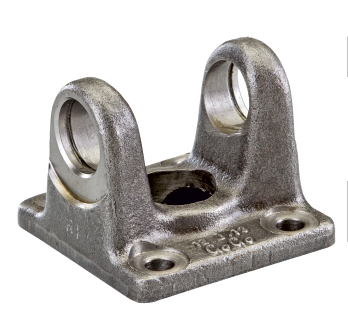

(400)- 0031 P22CH CROSS HOLDER
25.00 X 63.80 (0031-GX31) 2500 6380 0000 6630
4 HOLES, HEX15, HEIGHT 65/2.55" (SQUARE)
TATA INTRA V10,20,30 Ref.No.: NA/000/000/477/000
(398)- 1310 K15CHS (CROSS HOLDER)
4 HOLES, HEX15,CD80.60, HEIGHT 62/2.44 (SMALL)
LEYLAND DOST || Ref.No.: NA/000/000/436/505
(397)- 1710 P13CH (1710 P13CHB/P13 CH8)
BASE DIA-165/6.49" || CROSS HOLDER || 49.20 X 154.80 (1710-GX5280) || 4920 1548 0000 1679
8 HOLES, HEX 24, HEIGHT 136/5.35"
Ref.No.: 2841 4112 5101/056/606/803/14D
(392)- 0325 P08CHB CROSS HOLDER
BASE DIA-150/5.90" || CROSS HOLDER || 42.04 X 119.08 (0325-GX151) || 4204 1198 0000 1237
4 HOLES, HEX 19, HEIGHT 126/4.96"
TATA 1616 || Ref.No.: 2167 4112 5105/008/651/333/581
(40)- 1310 R02CH (R02 CH)
BASE DIA-99/3.89" 4 HOLES, HEX16 27.00 X 81.60(1310-GX15M) 2700 8160 0000 8460
HEIGHT 64/2.51"
MAHINDRA (XLO TYPE) Ref.No.: NA/091/000/454/227
(39)- 1310 R01CH (R01 CH)
CROSS HOLDER 27.00 X 81.60 (1310-GX15M) 2700 8160 0000 8460
4 HOLES, HEX 17, HEIGHT 61/2.40"
MAHINDRA (MSL TYPE) Ref.No.: 3202045/067/000/463/395
(38)- 1550 P24CH6 (P24 CH6)
BASE DIA-120/4.72" || CROSS HOLDER || 34.91 X 126.10 (1550-GX10) || 3491 1261 0000 1291
6 HOLES, HEX 17, HEIGHT 88/3.46"
TATA 1109 || Ref.No.: 2821 4111 5202/064A/657/327/335A
(37)- 1550 P24CH8 (1550 P24CH/P24CH)
BASE DIA-130/5.11" || CROSS HOLDER || 34.91 X 126.10 (1550-GX10) || 3491 1261 0000 1291
8 HOLES, HEX 17, HEIGHT 111/4.37"
TATA 1109 || RefN.; 2821 4111 5203/064/635/853/335
(36)- 0103 P21CH (P21 CH)
CROSS HOLDER || 22.02 X 54.90 (0103 GX99) || 2202 5490 0000 5730
4 HOLES, HEX13, HEIGHT 57/2.24" (SQUARE)
TATA ACE MAGIC || Ref. No.: 5010501/066/000/432/282
(35)- 1410 P18CH (P18 CH)
BASE DIA-120/4.72" || CROSS HOLDER || 30.19X106.15 (1410-GX160) || 3019 1061 0000 1091
6 HOLES, HEX 16, HEIGHT 88/3.46"
TATA 407 TURBO, TATA 709 TURBO || Ref.No.: 3-2-0058/062/610/268/291
(34)- 1480 GX11WP U.J. CROSS KIT
34.91 X 106.20 || (3491 1062 0000 1092 )
6 HOLES, HEX 17, HEIGHT 82/3.22"
TATA 407 N/M, PICKUP 410 BSIII || Ref.No.: NA/063/636/271/291A
(33)- 0407 P16CH (P16 CH)
BASE DIA-100/3.93" CROSS HOLDER 30.06 X 81.60 (0407-GX02) 3006 8160 0000 8460
6 HOLES, HEX 13, HEIGHT 73/2.87"
TATA 407 O/M Ref.No.: 2651 4110 5102 / 061/609/253/091
(31)- 0090 P10CH150 (P10 CH150)
BASE DIA-150/5.90" || CROSS HOLDER || 41.27 X 125.85 (0090-GX600) || 4127 1258 0000 1305
8 HOLES, HEX 19, HEIGHT 144/4.48"
TATA 2516, 2518,3516 || Ref.No.: SPR 90-2-19/055/605/760/14C
(30)- 0090 P10CH130 (P10 CH130)
BASE DIA-130/5.11" || CROSS HOLDER || 41.27 X 125.85 (0090-GX600) || 4127 1258 0000 1305
8 HOLES, HEX 17, HEIGHT 116/4.56"
TATA 2516, 2518,3516 || Ref.No.: INSKU-100860/054/604/757/14EX
(29)- 0325 P08CH (P08 CH)
BASE DIA-130/5.12" || CROSS HOLDER || 42.04 X 119.80 (0325-GX151) || 4204 1198 0000 1237
8 HOLES, HEX 17, HEIGHT 108/4.25"
TATA 2515 CEX || Ref.No.: 2632 4112 5103, F5023 2251 30075/075/616/759/14FX
(28)- 1312 P04CH (P04 CH)
BASE DIA-120/4.72" CROSS HOLDER || 46.06 X 120 X 69.10 (1312-GX104) || 4606 1200 6910 7510
6 HOLES, HEX 17, HEIGHT 115/4.52"
TAT 1312 DUMPER || Ref.No.: NA/053/602/215/14A
(27)- 1312 P03CH (P03 CH)
BASE DIA-130/5.11" || CROSS HOLDER || 46.06 X 120 X 69.10 (1312-GX104) || 4606 1200 6910 7510
8 HOLES, HEX 17, HEIGHT 114/4.48"
TATA 1312 DUMPER || Ref.No.: NA/053/602/215/14A
(22)- 0090 K02CH (K02CH)
BASE DIA-175/6.88" || CROSS HOLDER || 41.27 X 125.85 (0090-GX600) || 4127 1258 0000 1305
8 HOLES, HEX 15 HEIGHT 144/4.48"
LEYLAND 2214 || Ref.No.: SPR 90-2-19/074/611/403/151
(21)- 1210 P02CH (P02 CH)
BASE DIA-120/4.72" || CROSS HOLDER || 38.05 X 102.40 X 57 (1210-GX101) || 3805 1024 5700 6200
6 HOLES, HEX 17, HEIGHT 84/3.30"
TATA 1210, SE || Ref No: 312 411 1111/051/607/155/060
(20)- 1550 K08CH K08 CH
34.91 X 126.10 (1550-GX10) || 3491 1261 0000 1291
4 HOLES, HEX 21, HEIGHT 80/3.14"
LEYLAND TUSKER || Ref.No.: 2754 4199 5101/071/613/306/186
(19)- 1410 G01CH (G01 CH)
CROSS HOLDER || 30.19 X 106.15 (1410-GX160) || 3019 1061 0000 1091
4 HOLES, HEX 19, HEIGHT 69/2.71"
EICHER CANTER 10.95, 11.10 || Ref.No.: IB 001973/086/628/523/241
